Electric pump -> QB SERIES
PERIPHERAL PUMPS

The most remarkable character of PERIPHERAL pumps is the impeller containing numerous radial blades in its edge. The particular shape of the blades transfers radial gyration motion rapidly to the fluid on entry to the pump, Since numerous blades helps transfer energy, the fluid pressure increases progressively and gain high pressures relative and its curves are steep particularly.

QB series is relatively simple construction one, no expensive but reliable and safety. The wide range of QB series meets the most different operating requirements such as: Supply water from well, pool an so on, increase the water pressure in the pipe, garden sprinkling or clean washing.

These pumps should be installed in a covered area, protected against the weather.

PERFORMANCE AND WORKING LIMITS
Protection: IP 44
Insulation class F
Max. Pressure 10 bar
Max. Suction lift up to 8 m
Fluid temperature up to +80C
Max. ambient temperature up to +40 C

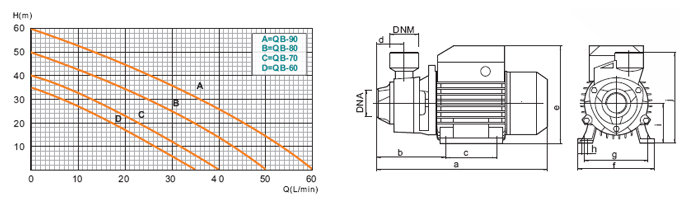

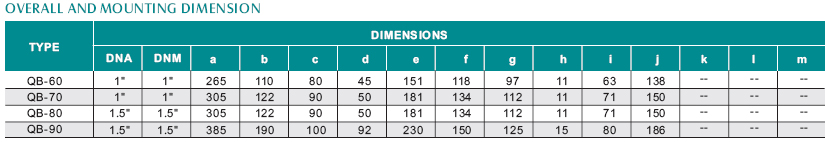

OVERALL AND MOUNTING DIMENSION
  click view>>

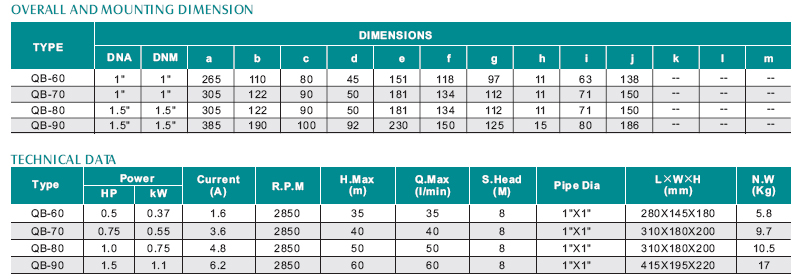

TECHNICAL DATA
  click view>>
