Alternator -> TFW SERIES

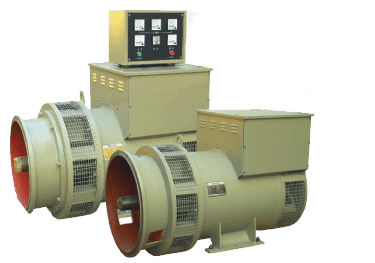

THREE-PHASE A.C. SYNCHRONOUS BRUSHLESS GENERATOR

HP Brushless series with three-phase synchronous, base on absorbing and digesting the advanced technology of international electrical industry, are a new-type designed by ourselves. advance technology of manufacturing electric machinery. lt's the new-type designed and developed A.C. synchronous generator by ourselves.

The series conform with most of the international standards, Such as: International Electrician Committee Command Standard lEC34 International Standardization Organization Command Standard lSO8528 NEMA Standard. The products have outstanding performance, reliable quality, convenient maintenance. The generator and the engine can be connected with steel or flexible material.

As a small-type generating station, it can be used in factories, buildings and work sites for lightening and electric power source.

MAIN SPECIFICATIONS
,Rated output: 10KW to 350KW
,Rated voltage: 440/230V
,Rated frequency: 50/60Hz
,Rated speed:1500/1800rpm
,Three-phase four-wire
,The Insulation Class: H

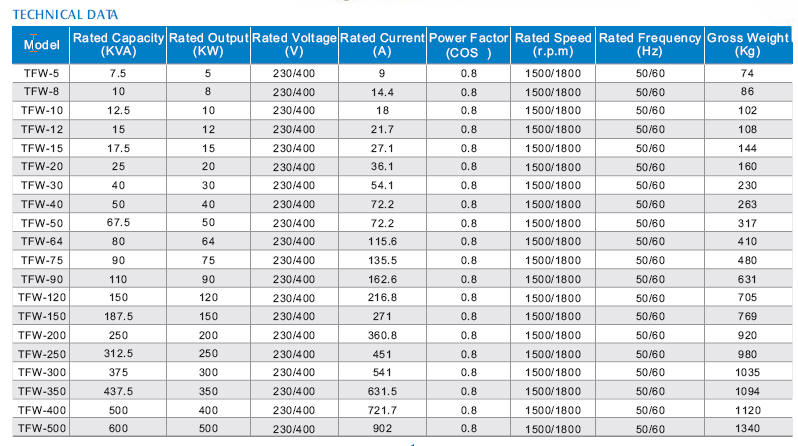

TECHNICAL DATA click view>>
