Electric motor -> Y SERIES

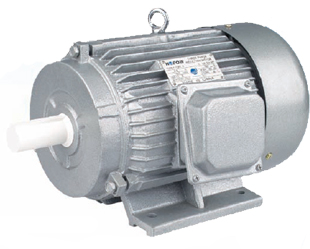

THREE-PHASE ASYNCHRONOUS INDUCTION MOTORS

Y Series motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor. It is newly deigned in conformity with the relevant rules of IEC and DIN42673 standards.

Y series motors have outstanding performance, such as high efficiency, less comsuption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.

Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines etc.

OPERATING CONDITIONS
,Frame size: H80~355
,Power:0.55~315kW
,Synchronous speed: 3000;1500;1000;750RPM
,Voltage:220/380/V;380/660V
,Frequency:50Hz 60Hz
,Protection class:IP44;IP54;IP55
,Insulation class: B F
,Ambi. Temperature: -15~+400C
,Altitude above sea level: <1000m

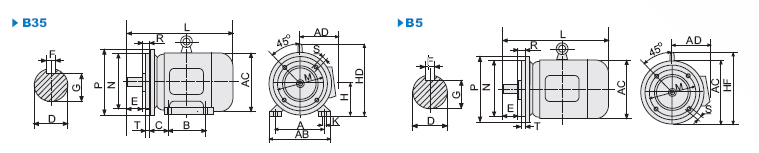

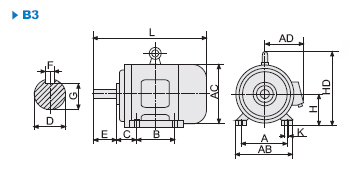

INSTALLATION SIZE AND OVERALL DIMENSION
  click view>>
